Portable Laser Obstacle Remover

Description

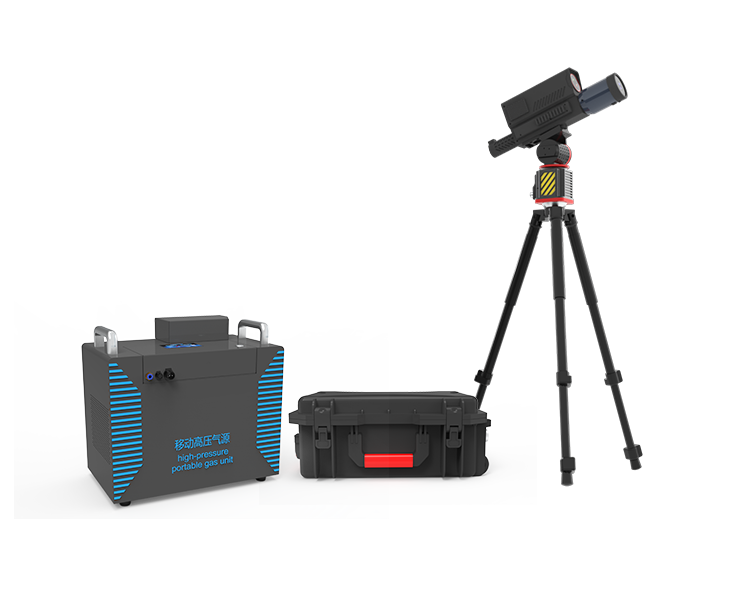

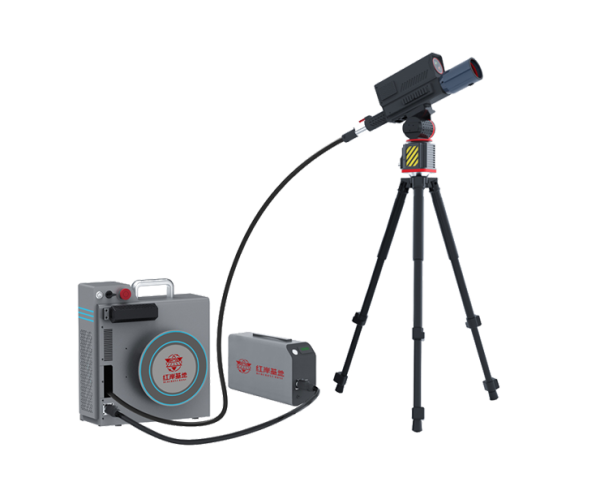

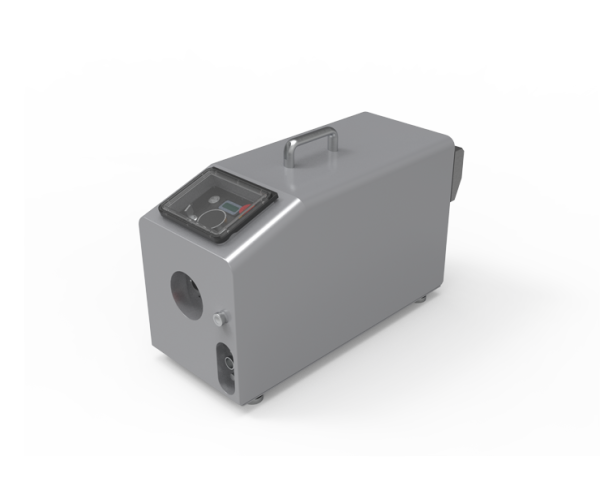

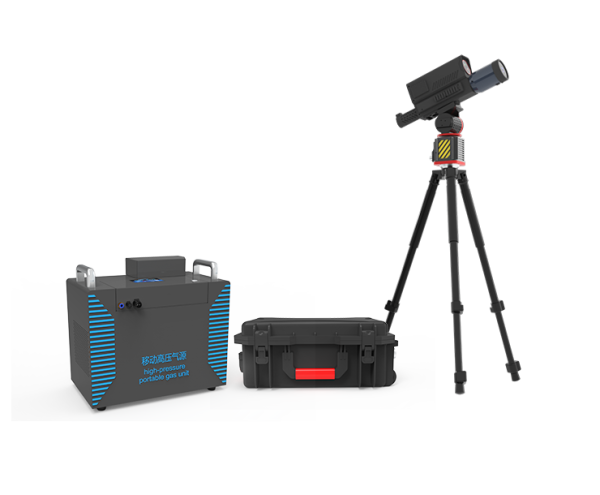

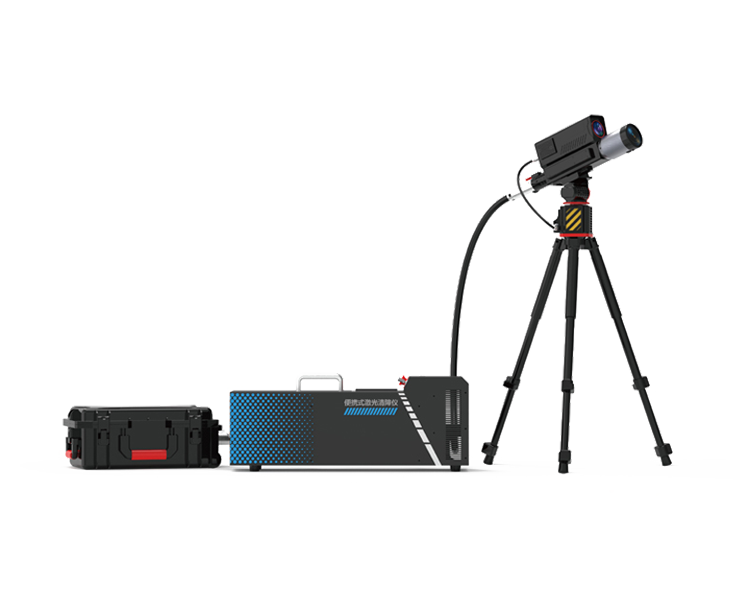

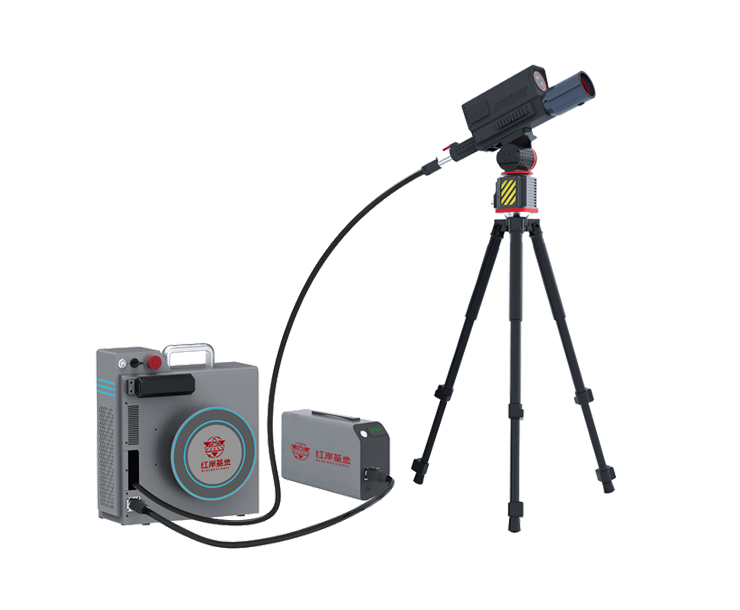

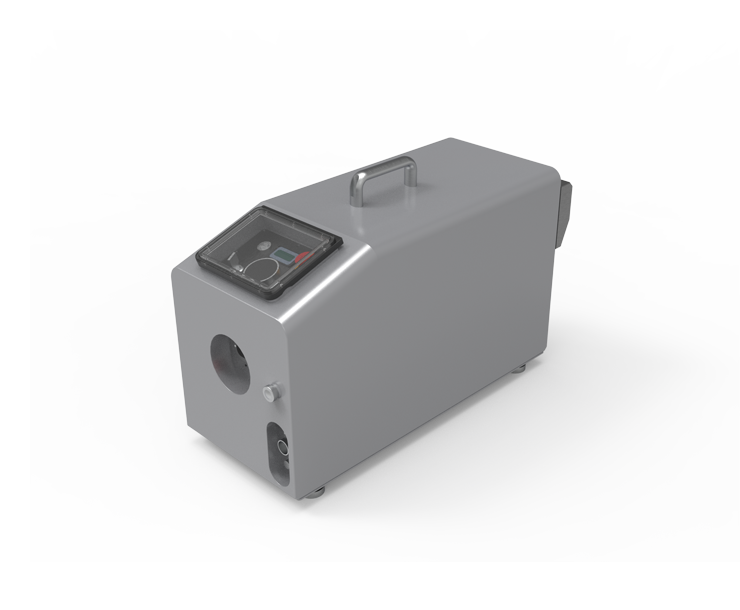

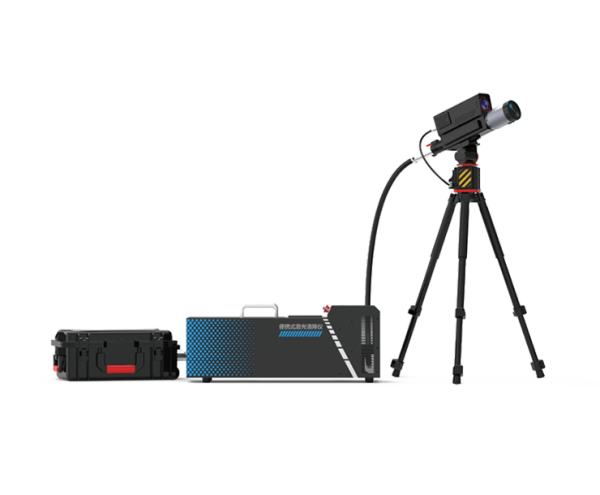

The product, consisting of a laser main unit, a focused transmitter, a mobile power supply, a precision gimbal, and a control terminal, also features a split, all-metal, lightweight design. The main unit and transmitter are separated for easy portability, while the aluminum alloy housing and air cooling system ensure continuous operation and stability. The laser utilizes the latest optical design and new refrigerant circulation technology, enabling power outputs up to 1500 watts while weighing less than 24 kg, making it highly portable and efficient. The large-aperture focused transmitter precisely focuses the beam spot to near the diffraction limit, achieving cutting efficiency 2-3 times that of the lower-power RF series.

In addition to clearing loose debris and rapidly cutting large trees in power transmission and railway applications, the product can also rapidly cut rebar and color-coated steel sheets in firefighting and emergency situations, enabling remote demolition during rescue operations.

Parameter Name Parameter Value/Description
Peak Wavelength of Active Light 1080 nm
Rated Output Power 800/1000/1200/1500 W
Main Unit Dimensions (mm) ~735 × 255 × 289 mm
Main Unit Weight (kg) ~24 kg
Pan/Tilt Adjustment Levels 9
Pan/Tilt Pan/Tilt Rotation Angle 360°
Laser Type Fiber Laser
Cooling Method Air Cooling
Zoom/Magnification Mode Electric
Operation Recording Function: Photo and Video Recording
Alarm Function: Sound and Light Alarm
Safety Protection Function: Anti-dumping and Anti-false Triggering
Remote Control: GPS Positioning, Remote Authorization, and Remote Lock (Optional)
Auto-Cut Function: Automatically cuts along a customizable path
Transmitter Connection Mode: Split (Quickly detaches from the main unit, automatically protects the optical path)
